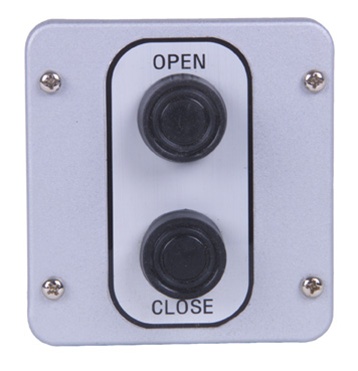

2BX Exterior 2 Button Surface Mount Control Station
2BX 2 Button Metal Exterior Control Station
Commercial Garage Door Opener 2BX Exterior Control Station



List Price:$229.48
Our Price:$186.53


Availability: Usually Ships in 1 to 2 Business Days
Product Code: 2BX
Qty:

Description Technical Specs Manuals and Helpful Tips

This 2BX control station is metal and has two buttons (Open/Close) that control a garage door or gate. Additionally, it has momentary contact and is NEMA 3R, 4 and 12 rated.
Features
The 2BX 2 Button (Open/Close) Exterior Metal Control Station Push button control station is used to operate gate openers and garage openers from a distance with a simple push of a button. Simple to install, they can be used to operate anything from a single gate to multiple gates or doors on your property. Wire is run to the open/close relay on your garage door opener or gate operator and some are key lockable for securing and entrance after hours or when access needs to be controlled.

Each exterior commercial door button station features a durable, weather-proof metal enclosure. The wire gauge can be 18-guage or 22-guage and the system can operate up to 120 volts AC. Easily installs on a goose-neck stand.
Technical
  • NEMA 3R, 4 and 12 rated
  • Metal enclosure
  • Surface mount
  • Dimensions 4 3/8" H x 4 1/8" W x 2 5/8"
  • Fully guarded
  • Two button control
  • UL listed
  • Aluminum die-cast enclosure
  • Open: Normally open
  • Close: Normally open
  • 6 amp capacity @ 125/250VAC
