2BXL Exterior 2 Button Surface Mount Lockout Control Station
2BXL 2 Button Metal Exterior Keyed Lockout Control Station
Commercial Garage Door Opener 2BXL Lockout Control Station



List Price:$347.24
Our Price:$227.62


Availability: Usually Ships in 1 to 2 Business Days
Product Code: 2BXL
Qty:

Description Technical Specs Manuals and Helpful Tips

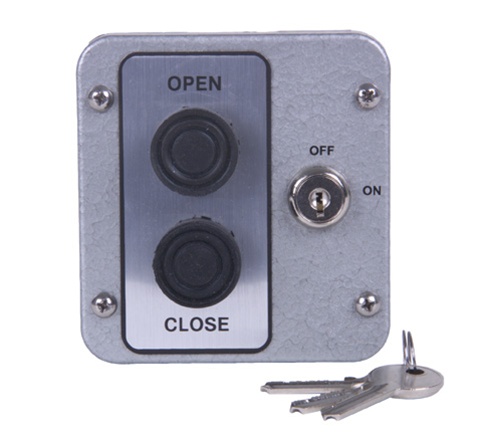

This 2BXL control station is metal and has two buttons (Open/Close) that control a garage door or gate. It also has a keyed lockout function.  Additionally, it has momentary contact and is NEMA 3R, 4 and 12 rated.
Features
The 2BXL 2 Button (Open/Close) Exterior Metal Control Station Push button control station with keyed lockout functionality is used to operate gate openers and garage openers from a distance with a simple push of a button. Simple to install, they can be used to operate anything from a single gate to multiple gates or doors on your property. Wire is run to the open/close relay on your garage door opener or gate operator and this one is key lockable for securing and entrance after hours or when access needs to be controlled.

Each exterior commercial door button station features a durable, weather-proof metal enclosure. The wire gauge can be 18-guage or 22-guage and the system can operate up to 120 volts AC. Easily installs on a goose-neck stand.
Technical
  • NEMA 3R, 4 and 12 rated
  • Metal enclosure
  • Surface mount
  • Dimensions 4 3/8" H x 4 1/8" W x 2 5/8"
  • Fully guarded
  • Two button control (Open-Close) with keyed lockout (On/Off)
  • UL listed
  • Aluminum die-cast enclosure
  • Open: Normally open
  • Close: Normally open
  • Button: 6 amp capacity @ 125/250VAC
  • Key switch: 4 amp capacity @ 250VAC (comes with 2 keys)
