3BLMBC Exterior Open/Close/Stop Control Station with Lockout

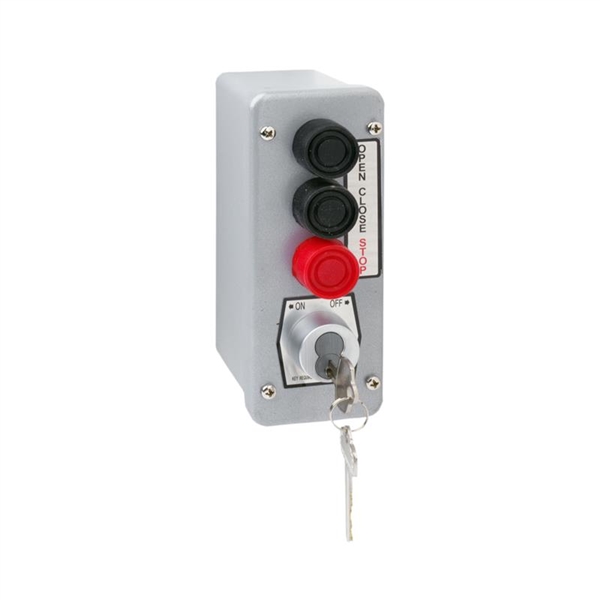

Commercial Garage Door Opener 3BLM-BC Exterior Keyed Control Station
Commercial Garage Door Opener 3BLM-BC Exterior Open/Close/Stop 3 Button Surface Mount Control Station with with a keyed best cylinder or equivalent lockout switch



List Price:$958.45
Our Price:$709.54


Availability: Usually Ships in 1 to 2 Business Days
Product Code: 3BLMBC
Qty:

Description Technical Specs Manuals and Helpful Tips

The 3BLM-BC exterior surface mount metal control station and has 3 buttons (Open/Close/Stop) that control a commercial garage door opener and is equipped with a keyed best cylinder or equivalent lockout switch. Additionally, it is NEMA 3R, 4 and 12 rated.
Features
The 3BLM-BC exterior Open/Stop/Stop 3 button control station with with a keyed best cylinder or equivalent lockout switch that is used to operate gate openers and garage openers from a distance with a simple push of a button. Simple to install, they can be used to operate anything from a single gate to multiple gates or doors on your property. Wire is run to the open/close/stop relay on your garage door opener or gate operator and this one is key lockable for securing and entrance after hours or when access needs to be controlled. The wire gauge can be 18-guage or 22-guage and the system can operate up to 120 volts.

Technical

  • NEMA 3R, 4 and 12 rated
  • Surface mount
  • Fully Guarded
  • Double pole contacts
    • Open: Normally open
    • Close: Normally open
    • Stop: Normally closed
  • Three button control: (Open-Close-Stop)
  • Dimensions 7" H x 2 3/4" W x 4" (see more under Techical Specs)
  • Underwriters Laboratory (UL) listed
  • Canadian Standards Association (CSA) approved
  • Metal enclosure
  • Button: 6 amp capacity @ 125/250VAC
  • Keyswitch: 20 amp capacity @ 125VAC
