Linear ACT-21A Mini Transmitter
Linear ACT-21 Mini Remote Control Transmitter
Linear ACT-21A Mini Remote Control Transmitter



Alternative Views:


List Price:$29.99
Our Price:$27.64

Availability: Usually Ships in 1 to 2 Business Days
Product Code: ACP00607
Qty:

Description Manuals and Helpful Tips

Linear ACT-21A Mini Remote Control Transmitter
Features

The transmitters are wireless radio controls designed for use with AM/11 or AccessPro receivers. In addition the MegaCode code is compatible with Linear MegaCode receivers and can be used with MDR and MDRG type garage door and gate receivers.

The MegaCode radio format provides unparalleled security. The format provides more than 1 million different codes.

These transmitters and receivers do not contain a typical “coding switch”. Each transmitter is permanently coded at the factory to a unique code. The receiver is programmed by “learning” the transmitter’s unique digital code. The receiver will activate only from these “memorized” transmitters.

Block coded versions of these transmitters can be ordered from the factory. Blocked codes are divided up as 16 facility codes, and 65,000 sequential local ID codes. This will save time when programming and maintaining large numbers of transmitters in an application.

The transmitters are powered from two 3-volt “button cell” batteries (type CR1616, CR 1620, DL 1620 or equivalent). The batteries should last up to 5 years with normal use.

To conserve battery life, an internal timer limits the transmission duration to 10 seconds if a transmitter button is held down.

This device complies with FCC Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.


Technical: Linear Moore-o-Matic MegaCode format 1-button mini key chain size 2 by 1 transmitter for garage door openers. Factory programmed MegaCode format supports over 1,000,000 codes. Block coding is available as a special request.

Compatibility: Works with ALL Linear MegaCode System products. Smart coding system, no dip switches, 318 MHz frequency. Same as part number ACP00607.

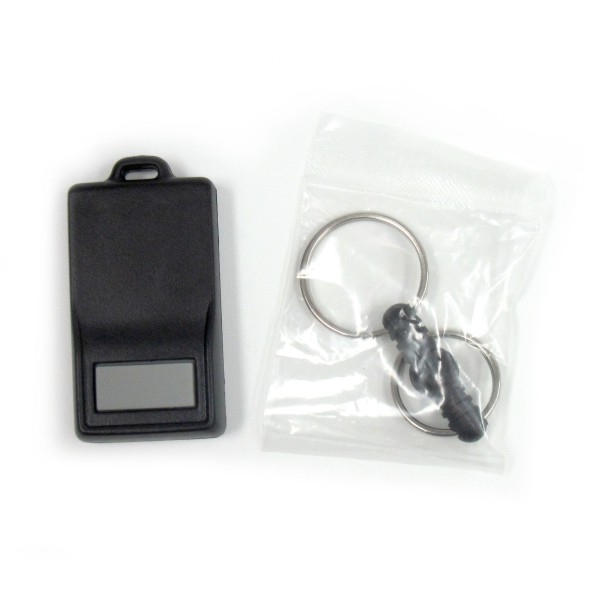

Includes: 1 Linear ACT-21A Mini Remote Control Transmitter, 3 volt lithium button cell batteries (5 year life), quick-disconnect key ring and programming instructions
