Wayne Dalton 128564 Lock Reinforcement Plate

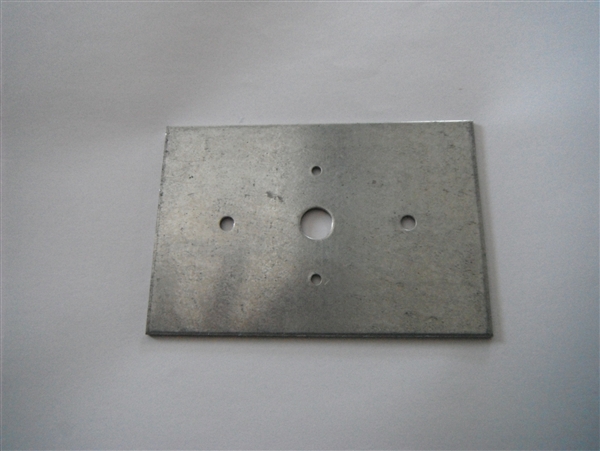

Wayne Dalton 128564 lock reinforcement plate
Wayne Dalton 261964 lock stile reinforcement plate.

List Price:$30.54
Our Price:$23.62


Availability: In Stock & Ships in 1 Business Day
Product Code: 128564
Qty:

Description

The Wayne Dalton 128564  lock reinforcement plate is for all Wayne Dalton urethane insulated, steel back, 8300, 8500, TM, TS, TW series commercial doors as well as other manufacturers
Features
Technical: Stamped, 1 piece 13 gauge galvanized steel construction

Dimensions: 3" x 4 -1/2" tall x 13 gauge thick
Lock hole diameter is 7/16", the 2 lock attachment screw holes are 3/16" diameter, attachment screw hole layout is 2 - 1/2" on center, with centered 7/16" lock shaft hole.
Lock shaft hole center is 2 - 1/4 to center from end of plate.
* Note, lock shaft hole is centered on backer plate.
Inside lock handle mounting holes are 1/8" @ 1 - 1/2 on center.

Compatibility: Works with Wayne Dalton models 8300, 8500, TM, TS, TW, and other manufacturers with urethane insulated, steel back doors.

Includes:1 Wayne Dalton 128564 lock reinforcement plate.
Screws are not included.
