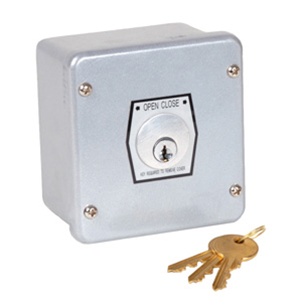

1KX Tamper-proof Exterior Keyed Control Switch
1KX Commercial Garage Door Key Switch
1KX Commercial garage door key switch with center return



List Price:$263.78
Our Price:$206.81


Availability: Usually Ships in 1 to 2 Business Days
Product Code: 1KX
Qty:

Description Technical Specs Manuals and Helpful Tips

The 1KX key control switch features a heavy-duty face plate with a die-cast aluminum enclosure and rubber gaskets for exterior use. These tamper proof switches are UL listed and CSA certified. Designed for activating overhead doors, storefront grilles and shutters.
Features
The 1KX exterior tamper proof keyed control station is used to activate overhead doors, storefront grilles and shutters from a distance with a key. Simple to install by running wire to the door operator.

Technical

  • NEMA 3R, 4 and 12 rated
  • Surface mount
  • Tamper-proof
  • Two position (Open-Close)
  • Center return
  • Aluminum die cast enclosure
  • Dimensions 4 3/8" H x 4 1/8" W x 2 5/8" D
  • Underwriters Laboratory (UL) listed
  • Canadian Standards Association (CSA) approved
  • Keyswitch: 15 amp capacity @ 125/250VAC
