Home > Commercial Door Controls >

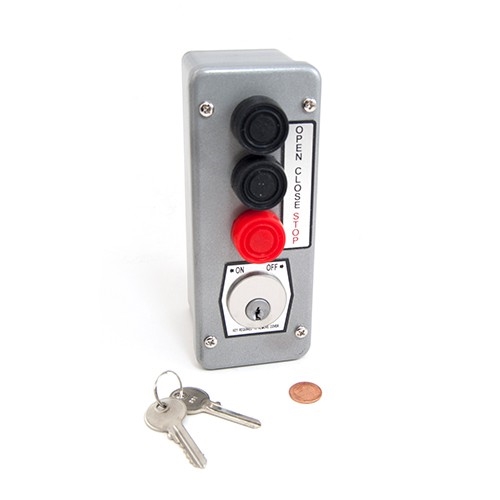

3BLM Exterior Open/Close/Stop Control Station with Lockout
Commercial Garage Door Opener 3BLM Exterior Keyed Control Station
Commercial Garage Door Opener 3BLM Exterior Open/Close/Stop 3 Button Surface Mount Control Station with with a keyed lockout switch



List Price:$244.20
Our Price:$185.89

Availability: Usually Ships in 1 to 2 Business Days
Product Code: 3BLM
Qty:

Description Technical Specs Manuals and Helpful Tips

The 3BLM exterior surface mount metal control station and has 3 buttons (Open/Close/Stop) that control a commercial garage door opener and is equipped with a keyed lockout switch. Additionally, it is NEMA 3R, 4 and 12 rated.
Features
The 3BLM exterior Open/Stop/Stop 3 button control station with with a keyed lockout switch that is used to operate gate openers and garage openers from a distance with a simple push of a button. Simple to install, they can be used to operate anything from a single gate to multiple gates or doors on your property. Wire is run to the open/close/stop relay on your garage door opener or gate operator and this one is key lockable for securing and entrance after hours or when access needs to be controlled.

Technical

  • NEMA 3R, 4 and 12 rated
  • Surface mount
  • Fully Guarded
  • Double pole contacts
    • Open: Normally open
    • Close: Normally open
    • Stop: Normally closed
  • Three button control: (Open-Close-Stop)
  • Dimensions 7" H x 2 3/4" W x 4" (see more under Techical Specs)
  • Underwriters Laboratory (UL) listed
  • Canadian Standards Association (CSA) approved
  • Metal enclosure
  • Button: 6 amp capacity @ 125/250VAC
  • Keyswitch: 20 amp capacity @ 125VAC
