Wayne Dalton Torquemaster Original Replacement Garage Door Spring




Alternative Views:


The prices are $49.99 each for single spring doors and $91.99 for a pair (left and right). The Star Door Parts staff will ship you the exact replacement Torquemaster part by the options you enter below. Balance weight is required.

List Price:$64.99
Our Price:$49.99


Availability: Usually Ships in 1 to 2 Business Days
Product Code: TM ORIGINAL


Garage Door Width*:


Garage Door Height*:


Garage Door Balance Weight*:
Cannot be zero (Example: 139)

Single or Double Spring System*:


Right or Left Spring*:


Qty:
Description Technical Specs Manuals and Helpful Tips


Wayne Dalton Torquemaster Springs

Founded in Mt. Hope, Ohio, in 1954, the Wayne Dalton Company is committed to creating innovative products that go far beyond industry standards and is often the only manufacturer of the latest garage doors. Now a national leader in the industry, the company’s largest manufacturing facility encompasses 900,000 square feet in Holmes County, Ohio, where the rich Amish heritage and work ethic of the local citizens flourishes.

Replace Your Old Garage Door Springs Today

You can have the assurance of quality and value when you purchase a Wayne Dalton Torquemaster garage door spring because of the company’s reputation for excellence and innovative ideas. A custom-made Wayne Dalton Torquemaster spring or Wayne Dalton Torquemaster torsion spring will give you faultless service year after year.

When your garage door has two springs, you should double your Wayne Dalton Torquemaster torsion spring replacement order to include a pair of springs. Springs have equal cycle lives, and when one spring fails, the other spring is usually not far behind.

Features
How to Identify your Wayne Dalton Torquemaster Spring:

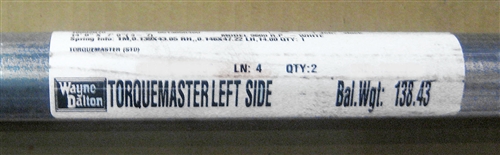

You can find most of the Torquemaster ordering information you need to complete the drop down options and the balance weight fields above on the label located on the left side of your garage door spring tube.


The most common Wayne Dalton door models are as follows: 8000, 8100, 8200, 9100, 9400, 9600, 9602, 9700, 9800, Foamcore 37, Foamcore II (FCII or FCH), Thermowayne 36 (TW36), Thermowayne II, Thermogard II (TGII or TGH) and Thermowayne 38.

How to Order

Here is what you need to know - (1) door height, (2) door width and (3) balance weight of your door.
Sometimes the weight appears as WT (see photo example below). Typically, for a single doors 7' - 10' wide, the weight will be between 55-150 pounds and for double doors 15'-18' wide the weight will be between 125-250
pounds.

You will also need to determine if you need a single our double spring - please refer to the section and photos below to assist in determining which spring system you need.
All information must be completed in the options area in order to process and prevent delays.

The Torquemaster springs you will receive will not always match your old springs length due to the switch from an oil tempered spring to a new high tensile strength music wire spring. In many cases the spring will be considerably shorter and in a few cases slightly larger. That it is why it is very important for you to fill in all the fields on the order for to assure you receive the proper springs for your door.



Original or Plus Spring?

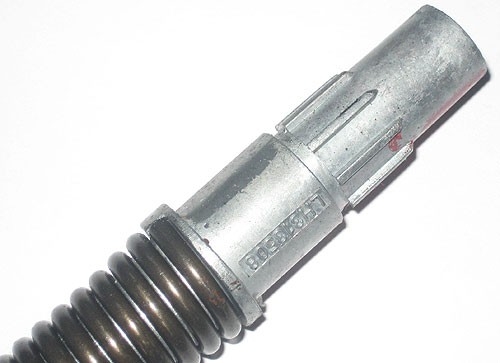

It is very important to match the winding end of your spring up to the product photo above
. If you have an end that is rounded and has external splines (this winding end may be made up of metal, as shown above, and can also be of molded plastic (white, black or clear)) you need to order the Original Torquemaster model, which is this model. Note that the winding end of the Torquemaster Plus model spring is hexagon-shaped. Typically the Plus spring will be found on doors manufactured after February 2007. Click here for the Plus model.

If you have a Torquemaster One spring system and would like to convert it to a Torquemaster Plus system, click here to download the instructions from Wayne Dalton.

Single or Double Spring System?
Please use the photos below to determine if you have a single or double spring system. If you are unsure, please contact us.






We always recommend replacing springs in pairs (where applicable) due to spring having equal cycle life and the opposite spring will most likely also fail soon leaving your door inoperable again and costing you additional money and freight.

Need Help?
If for some reason any of this information is missing we recommend sending us an e-mail using the Contact Us tab. Please include your garage door width, height, thickness, model number and if your door has windows or not. If you can not find your model number please e-mail us; a couple photos of the inside of your garage door to help us quickly identify your door and we will get back with the information you need to place your order. Since all Torquemaster springs are custom made, all sales are final and non-refundable. It is the responsibility of the person ordering to verify everything on the order is correct.


The Torquemaster springs you will receive will not always match your old springs length due to the switch from an oil tempered spring to a new high tensile strength music wire spring. In many cases the spring will be considerably shorter or slightly longer. That it is why it is very important for you to fill in all the fields on the order for to assure you receive the proper springs for your door.

What's Included:
Each Torquemaster spring comes with winding and stationary ends already installed and a protective plastic sleeve. If you have difficulty removing your broken spring from the tube you can use a series of wooden dowel (purchased at any hardware store) and a hammer to drive out old spring parts that may be lodged in the tube. Make sure the wooden dowels are as close to the inner diameter of the spring tube size as possible.


Torquemaster springs can only be shipped FedEx ground.
